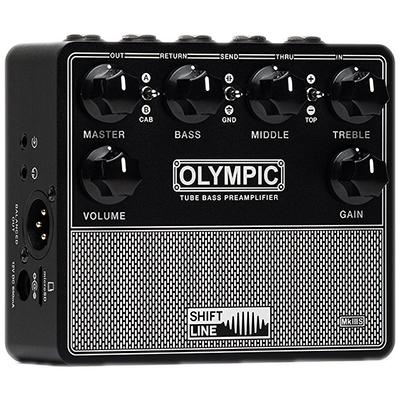

GAIN controls input signal amplification. It can go from a crystal-clear sound all the way to a classic California-style overdrive.
- The BASS, MIDDLE and TREBLE knobs constitute a classic 3-band passive EQ with a mild frequency correction effect and a characteristic mid scoop at 400Hz.
-
MASTER controls the volume of the signal coming from the OUT jack.
-
VOLUME controls the volume of the signal coming from the PHONES and BALANCED OUT jacks.
The MASTER and VOLUME knobs work independently.
- The TOP switch controls the signal's high frequency harmonic content. The "+" position accentuates the highs and the attack. The "-" position provides a milder sound by cutting the high frequencies. The neutral position does not affect the signal in any way.
- The GND switch allows to override "ground loops" that can negatively affect the signal when using XLR connections. In the lower position of the switch, the preamp's "ground" is connected to the signal receiver's "ground". In the middle position, the "grounds" are disconnected. In the upper position, the "grounds" are connected and an additional filter is used to remove interference.
The optimal setting of the GND switch is selected by ear: there should be a minimum amount of 50Hz hum and interference.
- The CAB switch selects one of the two built-in cabinet impulses:
• The "A" position selects the impulse recorded from a SUNN 200s (2х15) cabinet.
• In the middle position, cabinet simulation is disengaged.
• The "B" position selects the impulse recorded from an AMPEG SVT-810E (8х10) cabinet.
When using a microSD card, impulses are loaded from the corresponding folder on the card. The CAB switch affects the signal from the BALANCED OUT and the PHONES OUT but does not affect the signal from the main OUT.
Loading impulses from a microSD card:
Before using a microSD card, make sure it is formatted to the FAT32 filesystem.
When the memory card is used for the first time, a "SL_IR" folder is automatically created on it. The folder contains two more folders ("A" and "B", corresponding to the CAB switch positions) in which the default impulses are stored. To use external impulses, replace the default ones with your own files. The supported impulse format is 24bit 48kHZ WAVE PCM1, uncompressed.
To restore the default impulse files, insert a blank microSD card into the device. This will create a "SL_IR" folder containing the default files. If no card is inserted, the built-in impulses are used.
Specifications:
-
Tube type: 12AX7
-
Memory card type: microSD
-
IR latency: 1,2ms
-
IN: 6,3mm, mono, unbalanced, -20dB, 1MOhm input impedance
-
THRU: 6,3mm, mono, unbalanced, -20dB, 1kOhm output impedance
-
SEND: 6,3mm, mono, unbalanced, -10dB, 1kOhm output impedance
-
RETURN: 6,3mm, mono, unbalanced, -10dB, 1MOhm input impedance
-
OUT: 6,3mm, mono, unbalanced, +20dB, 1kOhm output impedance
-
BALANCED OUT: XLR, mono, balanced, +10dB, 1kOhm output impedance
-
AUX: 3,5mm, stereo, unbalanced, 0dB, 10kOhm input impedance
-
PHONES: 3,5mm, stereo, unbalanced, +10dB, 10Ohm output impedance
-
POWER: 12V DC 650mA, negative tip, 2.1/5.5mm diameter. Phantom power of the balanced line (+48V) or battery power are insufficient for the preamp to operate on. If phantom power is turned on, it will not damage the device. Use a regulated PSU only.
-
Dimensions (LxWxH): 124x104x55mm (4.9x4.1x2.2")
-
Unit weight: 480g (1.06lb)
-
PSU weight: 120g (0.26lb)
