GFI SYSTEM Enieqma

Name: GFI SYSTEM Enieqma
Brand: GFI System
SKU: GFI-ENIEQMA
Price: 669.0 AUD
Availability: InStock

$669.00

Enieqma is a multipurpose equalizer that packs a 5-band full parametric EQ, a ‘simple EQ class’ featuring 7 classic tone stacks (Baxandall, Tilt, Fender, Marshall, and Vox amps tone control, etc.), and a 3-band midrange equalizer that emulates the Pultec Midrange EQ processor. Enieqma offers unprecedented equalization capabilities in a pedal format.

FULL STEREO CAPABILITIES

Enieqma features true stereo EQ processors. The Left (L) and Right (R) channels EQ parameters may be linked or set independently. The high-contrast display provides invaluable visual feedback and spectral information by rendering the stereo EQ curves simultaneously. Flexible input/output routing options augments the stereo capability even further, allowing seamless connections with other mono and stereo devices.

PROTOTYPE EQS

“Prototypes” is a library of pre-made EQ settings that you can quickly use as it is, or modify as you see fit and save the change as user presets.

The library covers everything from simple lowpass / highpass filters to elaborate cabsim filters. Instead of starting from scratch, you can quickly audition the different prototype EQs in the library, select one that sounds closest to the tones you have in mind, make a few adjustment as needed, and you are all set!

At present, the prototypes library consists of 44 settings for ParaEQ mode, 12 settings for SimplEQ mode, and 12 settings for PultEQ mode. The library may be expanded in the future through firmware updates.

LIMITER & STEREO EXPANDER

Enieqma features a stereo Limiter as an optional processing element that you can use to catch peaks or transients from your signal and regulate them to a specified level, this keeps the output signal from clipping, which may occur with high EQ gain settings.

The Stereo Expander is another optional processing element that can be used to enhance the stereo image of a mono input or a stereo input signal.

Comprehensive external control

Aux Switches - accepts up to 3 external switches for additional control (bank up/down, booster toggle, etc).

MIDI In / MIDI Thru - nearly all features and functionalities of the pedal are opened to MIDI access.

SPECIFICATION

Key Features
Input impedance: 1 MOhm.
Output impedance: 500 Ohm.
Max Boost level: +15 dB.
Max input level: +7.23 dBV = 9.45 dBu = 6.5 Vpp.
SNR: 114 dB typical.
Frequency Response: 20 Hz to 20,000 Hz
AD/DA: 24-bit, 48 KHz.
Bypass: Buffered.

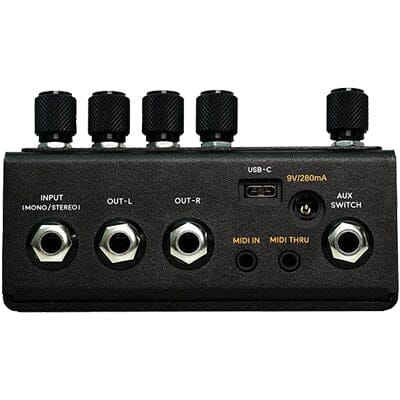

Output jacks : 1/4 inch TS.
Input jack: 1/4 inch TRS.
MIDI Input / MIDI Thru connector: 1/8 inch TRS.
USB connector : Type C
Dimension : 12 x 12 cm (4.7 x 4.7 inch)
Power requirement : 9VDC / 280mA, negative-center plug (power supply is not included).

2 channel EQ + Boost.
The two processing channels can be linked or configured/run independently.
3 EQ engines (Parametric EQ, Simple EQ, and Pultec Midrange EQ emulation) with the ability to stack and run two engines simultaneously..
64 Presets.
Master Volume and Input Level trim.
Built-in libraries of ready-to-use ‘Prototype EQs’.
Optional Limiter and Stereo Expander.
3 routing configurations : Mono to Stereo, Dual Mono, and Stereo to Mono.
MIDI Input and Thru.
Aux switches control input.

Deeply versatile

Massive amount of options and flexibility that can go above and beyond what some EQ pedals can. Being able to create low and hi pass filters within the EQ’s as well as layering two EQ options makes for great tonal characteristics in your rig. It takes a bit to learn but if you have the time to learn, you’ll wrap your head around it in no time.
