Free The Tone

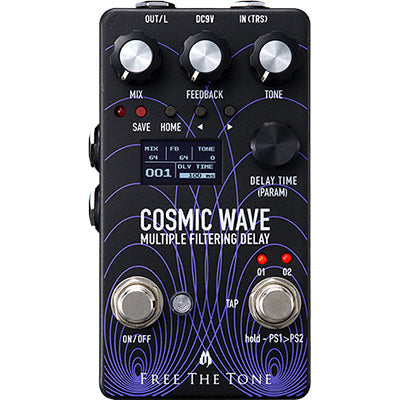

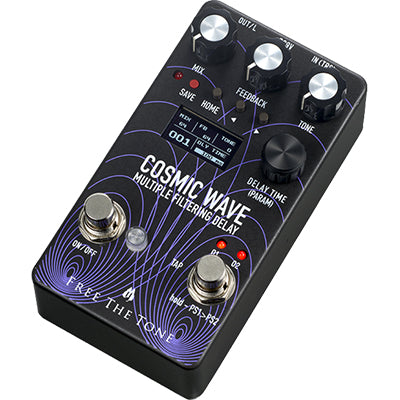

FREE THE TONE Cosmic Wave Multiple Filtering Delay CW-1Y


Welcome to the world of COSMIC WAVE!

COSMIC WAVE is a compact, but epoch-making digital delay with multiple filter functions. Using high-speed signal processing with a dedicated DSP and analog & digital audio circuits we perfected over time, this compact unit attains high sound quality equal to our FT-2Y FLIGHT TIME Digital Delay and FF-1Y FUTURE FACTORY RF Phase Modulation Delay. This unit’s tone filter can process the delay sound to have a rich tone or conversely adjust it to be far from the original sound. The proprietary COSMIC filter creates an effect sound reminiscent of outer space, adding a new color to your delay sounds. Utilizing a new method, the newly developed reverse delay succeeds in producing a smoother, more musical reverse sound. In addition, we added a new function to adjust the number of output bits of the delay sound in 1-bit units, from smooth and high-quality 24-bit to rough 8-bit sound that contains distorted noise when the volume is lowered. You can reproduce the nuances of the delay sound used in the 1980s and 90s, and even the delay sound with the bitcrusher effect applied.
Enjoy the world of COSMIC WAVE with attractive new features.

FEATURES

  • Built-in multiple filter effects including equalizer function. It is possible to apply multiple filters at the same time (Cosmic Filter, Bandpass Filter, 3-Band EQ, Tone).
  • Equipped with a newly developed reverse delay.
  • Equipped with output bit number adjustment function (8–24 bits).
  • Equipped with a small display: Dramatically improved operability.
  • High-speed effect processing performed by a dedicated DSP
  • Combination of high-speed arithmetic processing with 32-bit fixed-point arithmetic and high-precision arithmetic processing with 32-bit floating-point arithmetic achieves both high quality sound and high processing speed, and provides the best performance.
  • Delay time can be indicated in milliseconds or BPM.
  • Tempo can be tap-entered via the footswitch.
  • Presets 1 and 2 can be easily switched via the footswitch.
  • Feedback Level Limit function
  • Kill Dry function
  • Trail On/Off function
  • Delay Phase Inversion function

SPECIFICATIONS

Number of presets User Presets = 128, Factory Presets= 11
Input impedance 1MΩ
Output load impedance min. 10 kΩ
Max. input level +10 dBm
Terminals 1 x 1/4-inch standard TRS phone jack (IN(TRS)), 3 x 1/4-inch standard TS phone jacks (OUT/L, OUT/R, EXP/CV/FS), DC9V input jack (for AC-DC adapter), 3.5-mm stereo mini phone jack (MIDI IN)
Power 6F22 battery (alkaline type), DC9V AC-DC adapter
Current consumption approx. 185 mA
Dimensions 66(W) x 125(D)x 54(H) mm (incl. protuberances such as jacks, etc.)
Weight approx. 335 g
Accessories: Warranty Card, Web Access Card, Safety Instructions, Rubber Foot
